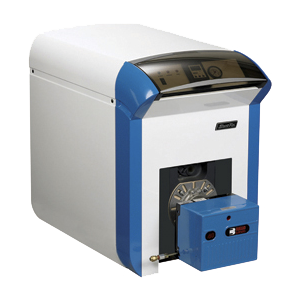

The quietest oil boiler the Industry has to Offer! Hot water, atmospheric burner with efficiencies of up to AFUE 87%. The EC-10 Series has a proprietary cast iron eutectic heat exchanger that is resistant to thermal shock and corrosion. The cast iron is flexible and resilient which allows for lower temperature operation.
MODEL | Output MBtuH | IBR MBtuH | Firing Rate GPH | AFUE | Water Content Gal. | HxWxD | Weight. Lbs. |
---|---|---|---|---|---|---|---|
EC-13A | 91.0 | 69.0 | 0.65 | 87.0 | 5.00 | 32-7/8x22-1/2x27 | 267 |
EC-13B | 98.0 | 74.0 | 0.70 | 86.0 | 5.00 | 32-7/8x22-1/2x27 | 267 |
EC-14A | 112.0 | 85.0 | 0.80 | 87.0 | 6.50 | 32-7/8x22-1/2x32 | 328 |
EC-14B | 126.0 | 95.0 | 0.90 | 86.0 | 6.50 | 32-7/8x22-1/2x32 | 328 |
EC-15A | 140.0 | 107.0 | 1.00 | 87.0 | 8.00 | 32-7/8x22-1/2x77 | 390 |
EC-15B | 154.0 | 117.0 | 1.10 | 86.0 | 8.00 | 32-7/8x22-1/2x77 | 390 |
EC-16A | 161.0 | 123.0 | 1.15 | 87.0 | 9.50 | 32-7/8x22-1/2x42 | 452 |
EC-16B | 175.0 | 132.0 | 1.25 | 86.0 | 9.50 | 32-7/8x22-1/2x42 | 452 |
EC-25 | 217.0 | 165.0 | 1.55 | 86.5 | 11.00 | 42x22-1/2x35-3/8 | 567 |
EC-26 | 266.0 | 202.0 | 1.90 | 86.5 | 13.00 | 42x22-1/2x40-3/8 | 655 |
EC-27 | 315.0 | 237.0 | 2.25 | 0.0 | 15.00 | 42x22-1/2x45-3/8 | 741 |
EC-28 | 350.0 | 263.0 | 2.50 | 0.0 | 17.00 | 42x22-1/2x47-3/8 | 827 |
